Motorcycle dynamometer. SD-Series

General information

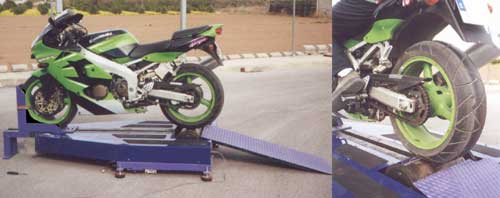

SmartDyno SD-300 is an inertia dynamometer that provides the curves of torque and power of bike through a software very easy to use.

It has a built in start engine intended to bikes that do not have a starter engine.




Characteristics

  • Electrical starting powered by internal 12V battery.
  • Arm of control.
  • Tests can be done by only one person over the bike (without having to operate in the computer).
  • Standard connection RS232 to any computer with no need of installing a special card.
  • Easy and powerful Software.
  • Adjustable wheelbase between 850 mm and 1850 mm

General data

  • Maximum power 200 Hp (147 Kw)
  • Terminal speed 300 Km/h
  • Fully factored load on the axis 450 kg.

Details about roller

  • Diameter 300 mm
  • Wide knurled band 200 mm
  • Roller weight of 190 kg.
  • Inertia 2.11 kg.m2

Dimensions and weight

  • Dimensions without ramp 2110 xs 1000 xs 800 mm
  • Approximate weight 400 kg.

More photos in Photo Gallery 2
